High-density circuit board technology is a crucial aspect of modern circuit board design and manufacturing. It enables the integration of more circuit components into a smaller physical space, resulting in higher performance. This article discusses the principles, design and production processes, quality control measures, and applications of high-density circuit board technology in various industries, including electronics, communications, and aerospace.

1. Principles and Development of High-Density Circuit Board Technology

High-density circuit board technology involves densely arranging more circuit components, signal lines, and power lines on a circuit board using advanced techniques. This approach addresses the increasing demands for smaller sizes, lighter weight, lower power consumption, and improved performance in electronic products. Consequently, high-density circuit board technology has emerged to significantly reduce circuit board size while enhancing signal transmission rates, interference resistance, lifespan, and production efficiency while lowering costs.

The evolution of high-density circuit board technology began in the 1960s when IBM developed the world's first high-density printed circuit board. This board utilized four layers of copper foil, with line widths and spacings as narrow as 0.025 mm, marking a significant industrial advancement at the time. Following this, Japan's NEC Corporation began developing high-density circuit boards for electronic products like mobile phones and laptops in the late 1970s. Since the 21st century, technology has rapidly progressed into more advanced forms, such as ultra-thin multi-layer boards, inner-layer perforation, and micro-hole/blind-hole technology, substantially enhancing three-dimensional density and performance levels.

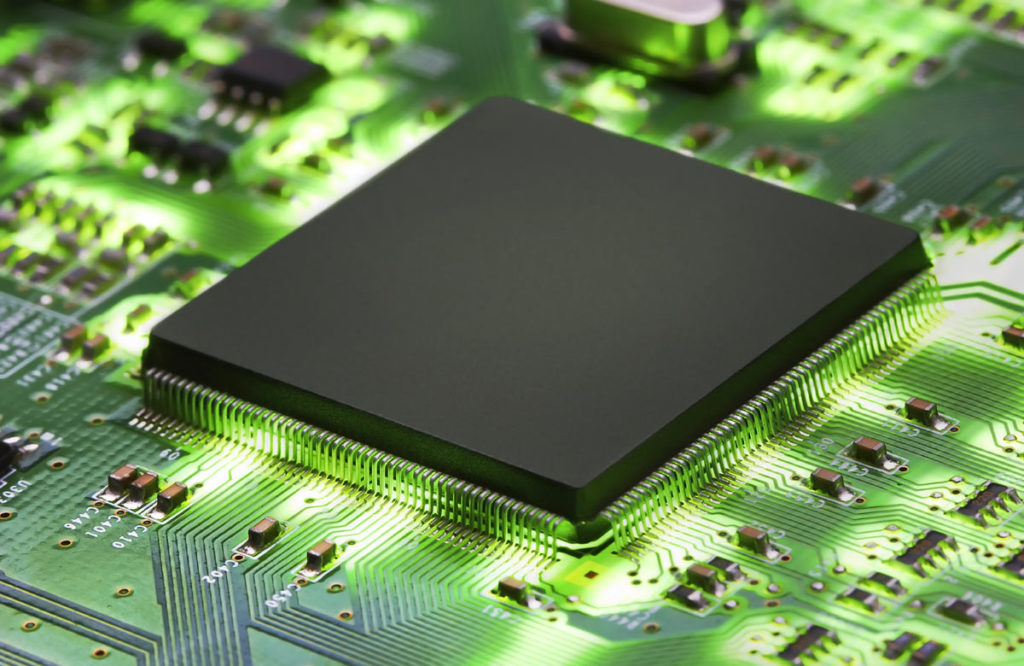

High Density Circuit Board Technology and Application

2. Design and Production Process of High-Density Circuit Boards

The design and production of high-density circuit boards involve a complex and carefully coordinated process comprising several steps. The design phase is essential for efficient manufacturing and serves to rectify potential problems. The specific steps include:

1. Layout Design: Arranging the components on the circuit board based on actual size, the distribution of chip pins, and other considerations.

2. Circuit Design: Determining critical factors such as line width, line spacing, board thickness, material selection, and the number of layers.

3. Design Verification: After completing the design, the circuit must be simulated and verified using specialized circuit board CAD software to address any issues and reach a consensus on resolutions.

4. Manufacturing: Once verification is complete, the design documents are sent to a manufacturing facility, where the circuit board is produced through various processes, culminating in a finished high-density circuit board.

5. Testing and Inspection: After production, a series of tests—including electrical performance, soldering quality, metal coating thickness, and surface quality—are conducted to ensure the circuit board meets the necessary performance criteria.

High-density circuit board technology is gaining significant attention in electronics manufacturing. By reducing size, improving performance, and enhancing reliability, it meets modern electronic device demands for compactness, economic efficiency, and powerful capabilities. As technology continues to advance, the application of high-density circuit board technology is expanding, promising a broader future development horizon.
