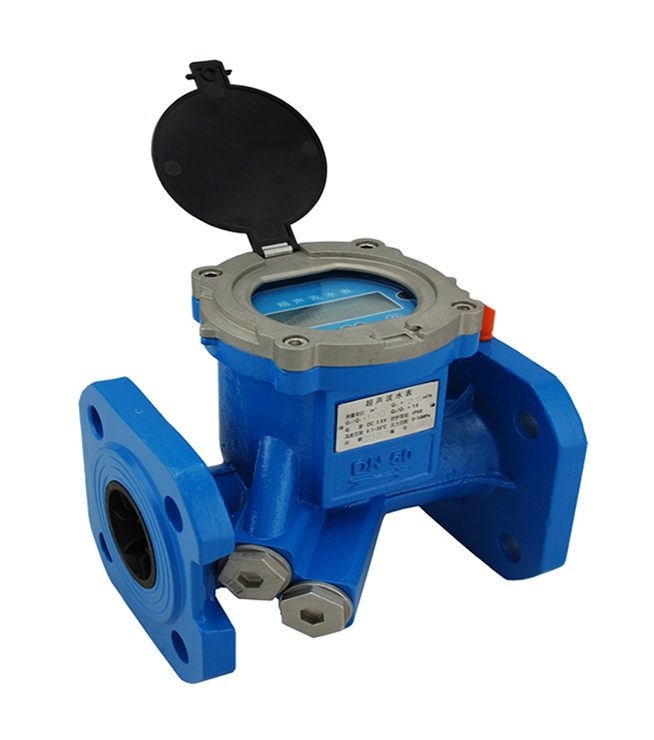

The ultrasonic water meter operates on ultrasonic transit-time measurement technology. It uses advanced signal processing to calculate the difference in travel time of ultrasonic waves, resulting in highly precise velocity measurement. This device combines measurement, calculation, and display functions and utilizes micro-power technology, allowing a single battery to last for over 6 years. By default, it uses plate number 1, but we can accommodate special requirements with plate number 2. It can accurately measure a minimum flow rate of 0.01 m³/h, meeting the international standard OIML R49/MID. Additionally, this instrument is compact, highly stable, and resistant to interference.
Ultrasonic Water Meter PCBA
Communication Protocol: - Calibration protocol
- CJ/T188-2004 technical conditions for data transmission of household measurement instruments
- Modbus protocol
- EN1434-2007 European standard protocol
Data Storage:
The device is equipped with a special data storage chip that has the capability to store data even in the event of a power failure. It can also store historical data for the previous 18-36 months, including cumulative heat, cumulative cold, cumulative flow, maximum flow rate of the month, and maximum power of the month.
Alarm Information:
The device can provide alerts for the following conditions:
- No signal from battery under voltage transducer or no water from pipeline
- Abnormal inlet water temperature
- Abnormal return water temperature
Preset Parameters:
It is possible to preset coefficients according to different calibers to improve production efficiency.
Heat and Cold Meter:
The product is equipped with the function of measuring both heat and cold quantity intelligently.
Protection Function:
The module is equipped with a TVS tube and thermistor for protection against electromagnetic surges. It also features an SMD crystal oscillator to enhance product reliability.
Product Features:
- Display function: cumulative heat, cumulative cold, cumulative flow, flow rate, inlet and return water temperature, temperature difference, power, working time, address, and other information. - Power supply function: dual power supply scheme of battery power supply and MBUS bus power supply to improve product service life.
- Communication interface: standard infrared, MBUS communication. Expandable communication options include pulse, TTL, and 485.
- Chip model: R7F0C019L2DFB
1. High computing speed for the chip's main frequency
2. Fast main frequency computing speed and high efficiency in the execution of instructions
3. Low power consumption: static power consumption of 8μA
4. Flash capacity of 64K to store more data and information.
