Ball Grid Array, or BGA for short, is a cutting-edge packaging technique used in SMT assembly. It is a noteworthy accomplishment in the realm of electronics, demonstrating significant improvements in packaging methods.

The surface of BGA packages is covered in a large number of spherical bumps that offer a plethora of connectivity connections that facilitate the achievement of high-density packing goals.

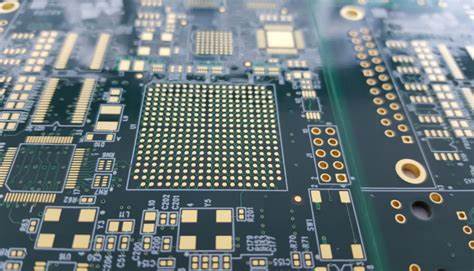

What is a Ball Grid Array (BGA) on a PCB Board?

Lead-free SMD components are called BGA integrated circuits. Rather, they have an array of metal balls integrated into the PCB called solder balls. The laminated substrate located at the bottom of the PCB packaging board is used to fix the BGA solder balls on the PCB.

Die connections are routed to the solder balls using metal traces. When comparing BGA-PCB packages to dual in-line boards and flat packages, enormous IO connections are possible.

Because there are fewer connections between the silicon die and the solder balls, BGA integrated circuits operate more quickly and efficiently. For high-speed PCB products with densely packed circuits, the BGA package offers an ideal solution due to its small lead length and ample lead space.

A ball grid array (BGA) is a type of surface-mount packaging used for integrated circuits. BGA packages are used to permanently mount devices such as microprocessors. A BGA can provide more interconnection pins than can be put on a dual in-line or flat package, each pin is provided with a solder ball. All connections are distributed in a uniform surface grid or matrix on the component. The whole bottom surface of the device can be used instead of just the perimeter.

Soldering of BGA devices requires precise control and is usually done by automated processes. BGA devices are not suitable for socket mounting.

The advantage of BGA:

1. Efficient use of PCB space. Using BGA packages means fewer component involvement and smaller footprints, it is also help to save space for custom PCBs, which greatly increases the effectiveness of PCB space.

2. Improve thermal and electrical performance. Due to small size of PCB base on BGA package, heat dissipation is more easily. When silicon wafer is mounted on top, most heat can be transmitted down to the ball grid. When silicon wafer is mounted on the bottom, the backside of the silicon wafer connect to the top of the package and is considered to be one of the best heat dissipation methods. The BGA package has no pins that can be bent and broken, which makes it stable enough to ensure large-scale electrical performance.

3. Improve manufacturing profit based on welding improvement. Most BGA package pads are large, which makes large area soldering easier and more convenient. As a result, the manufacturing speed of PCB increased with the increase of manufacturing yield. In addition, when using larger pads, it is easily to re-work.

4. Less damage. BGA leads consist of solid solder balls that are not easily damaged during operation.

5. Reduce costs. All advantages shown above help to reduce costs. Efficient use of PCB space provides opportunities to save material, while improving thermoelectric performance helps ensure the quality of electronic components and reduce defects.
