The history of a printed circuit boards.

Before the development of printed circuit boards electrical and electronic circuits were wired point-to-point on a chassis. Typically, the chassis was a sheet metal frame or pan, sometimes with a wooden bottom. Components were attached to the chassis, usually by insulators when the connecting point on the chassis was metal, and then their leads were connected directly or with jumper wires by soldering, or sometimes using crimp connectors, wire connector lugs on screw terminals, or other methods. Circuits were large, bulky, heavy, and relatively fragile and production was labor-intensive, so the products were expensive.

In the 1990s the use of multilayer surface boards became more frequent. As a result, size was further minimized and both flexible and rigid PCBs were incorporated in different devices. In 1995 PCB manufacturers began using microvia technology to produce High-Density Interconnect (HDI) PCBs.

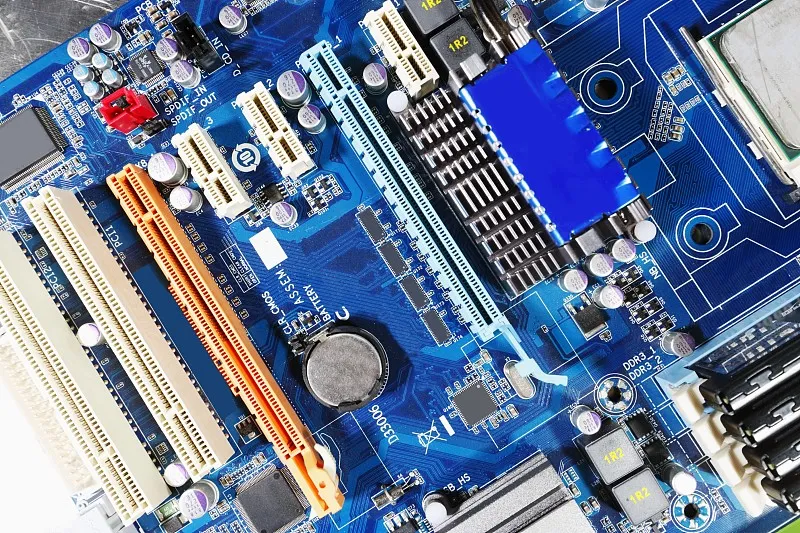

The technological components of PCBs have been measured down to the microscale during the last 50 years. A standard calculator's PCB in the 1960s had about thirty transistors on it. These days, a single motherboard chip in a typical computer has millions of transistors on its PCB. More and more functionality can now be loaded onto ever-tinier gadgets thanks to these advancements. Additionally, parts like resistors and capacitors have shrunk to minuscule fractions of their original proportions.

Thanks to the advancements in PCB technology, people are now accustomed to prompts that activate in a matter of seconds. Nowadays, a five-second lag on a particular function is likely to make a PC or mobile device user nervous. Video games, which have evolved from the basic Pong systems of the 1970s to the photorealistic situations that allow players to fight and race via today's gaming consoles, are perhaps the most obvious example of PCB progression.

Printed circuit boards have held the internal circuitry necessary for the activation and operation of electronic devices ever since the emergence of electronics and digital technologies. Post-war technology could never have reached the current level of high-tech capability and sophistication without printed circuit boards. The public anticipates a future with drone deliveries, self-driving automobiles, robot work, and smart appliances as the ultimate capability of computers approaches its peak.
