Aerospace PCB Assembly

The process of building and testing circuits on printed circuit boards is known as aerospace PCB assembly. This can guarantee that the electrical system functions as planned. It can also assist in locating any flaws or problems with these systems.

Precautions for aerospace circuit boards

1.Accurate material specifications

The material specifications for aerospace PCB assembly and aerospace products are generally very strict, and everything used in manufacturing and assembly will be inspected, inspected, and double-checked according to higher standards. For example, components with a certain proportion of two metal mixtures must meet very specific tolerances.

2.Withstanding unforgiving surroundings

Certain radiation and heat considerations are necessary for a large number of PCB defense and aerospace applications. Extreme temperatures are typically associated with external design difficulties, like the flames that spewed from the space shuttle's bottom during launch. However, heat could also be a problem for internal machinery. For instance, the engine area may be several thousand degrees hot. High heat resistance components are required for these engines since they are monitored by electrical systems.

In the ionosphere, radio frequency radiation poses a serious risk at the atmospheric level. All spacecraft and systems are vulnerable to ionic radiation, but of more concern is the possibility that it could interfere with wireless communication.

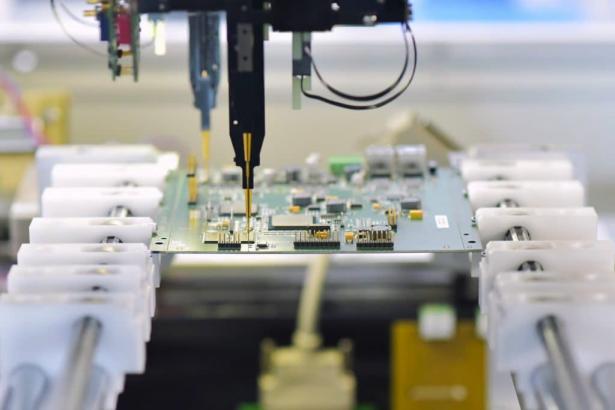

3.Testing and Inspection

Although other tests can be carried out depending on the product, vibration, and thermal testing are the two most pertinent tests for aerospace items.

Reliability of aerospace circuit boards

Because PCBs in aircraft applications must function in harsh environments, reliability is one of the most crucial considerations. For instance, because maintenance expenses are significant, satellites need to send signals continuously for extended periods of time.

Aerospace uses radio waves for communication, hence the equipment's dependability is essential. They demand extra shielding on the PCB and antenna at key places. Reducing the length of the transmission line can help increase communication dependability.

Another thing that manufacturers need to think about when making PCBs for aerospace applications is corrosion. Copper is frequently used in PCBs due to its excellent conductivity and comparatively low cost. To stop corrosion, a coating must be placed on exposed copper since pure copper also possesses chemical activity. Manufacturers may also utilize epoxy coatings as oxidation barriers, however aerosol coatings and solder mask films are the most common types of these coatings. These coatings must not only prevent corrosion in wires but also exhibit exceptional heat resistance.

Aerospace PCB assembly demands more precision and error-free manufacturing. Every step of the assembling procedure is thoughtfully planned to yield a circuit board that operates flawlessly.
